Anyone in the construction and mining industry knows that your needs are heavy duty. Our GPS Hardware is proven in the toughest conditions.

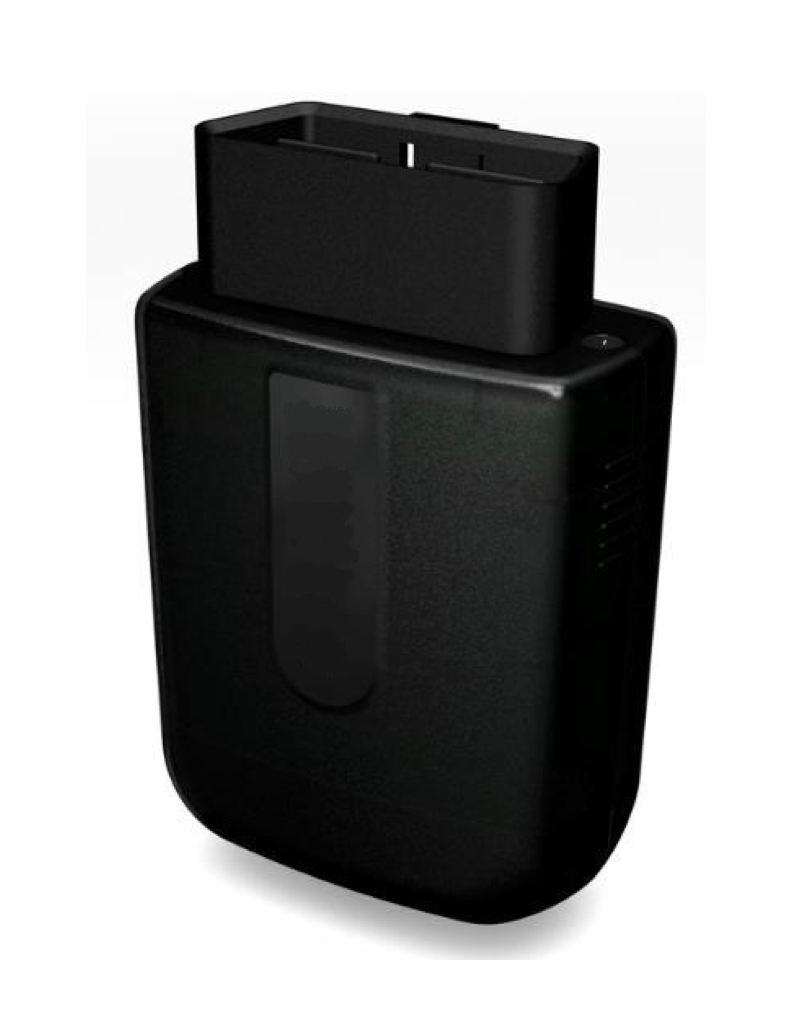

WX9 OBDII Vehicle Telematics
The WX9 is an optional 2G/3G GPS tracking unit with OBD-II Interface and plug-n-play installation.
WX9 features OBD / CAN Bus J1939 data acquisition, Bluetooth connectivity, driving behaviour event management and user-defined reports. The WX9 is an ideal solution for Usage Based Insurance, Car Rental, Fleet Management of both Passenger Vehicles and Heavy-Duty Trucks, and Teenage Driver Tracking.
Optional Accessories:
Flexible wireless network options
Small and easy plug-and-play installation
Ultra-low current consumption in deep sleep mode
Data communication by SMS/TCP/UDP
High GPS sensitivity
Built-in 3-axis G-sensor
FOTA firmware upgrade using FTP
Configurable Real Time Tracking & Logging
32 user defined geofences
Build-in buzzer for configurable event
Flexible wireless network options
Small and easy plug-and-play installation
Ultra-low current consumption in deep sleep mode
Data communication by SMS/TCP/UDP
High GPS sensitivity
Built-in 3-axis G-sensor
FOTA firmware upgrade using FTP
Configurable Real Time Tracking & Logging
32 user defined geofences
Build-in buzzer for configurable event
Optional Features:
Backup battery for Tampering Alert application
Bluetooth support for cell phone user interactive application
Optional Accessories:
Low profile OBDII extension cable
Low profile OBDII pass through cable
OBDII-to-J1939 adapter

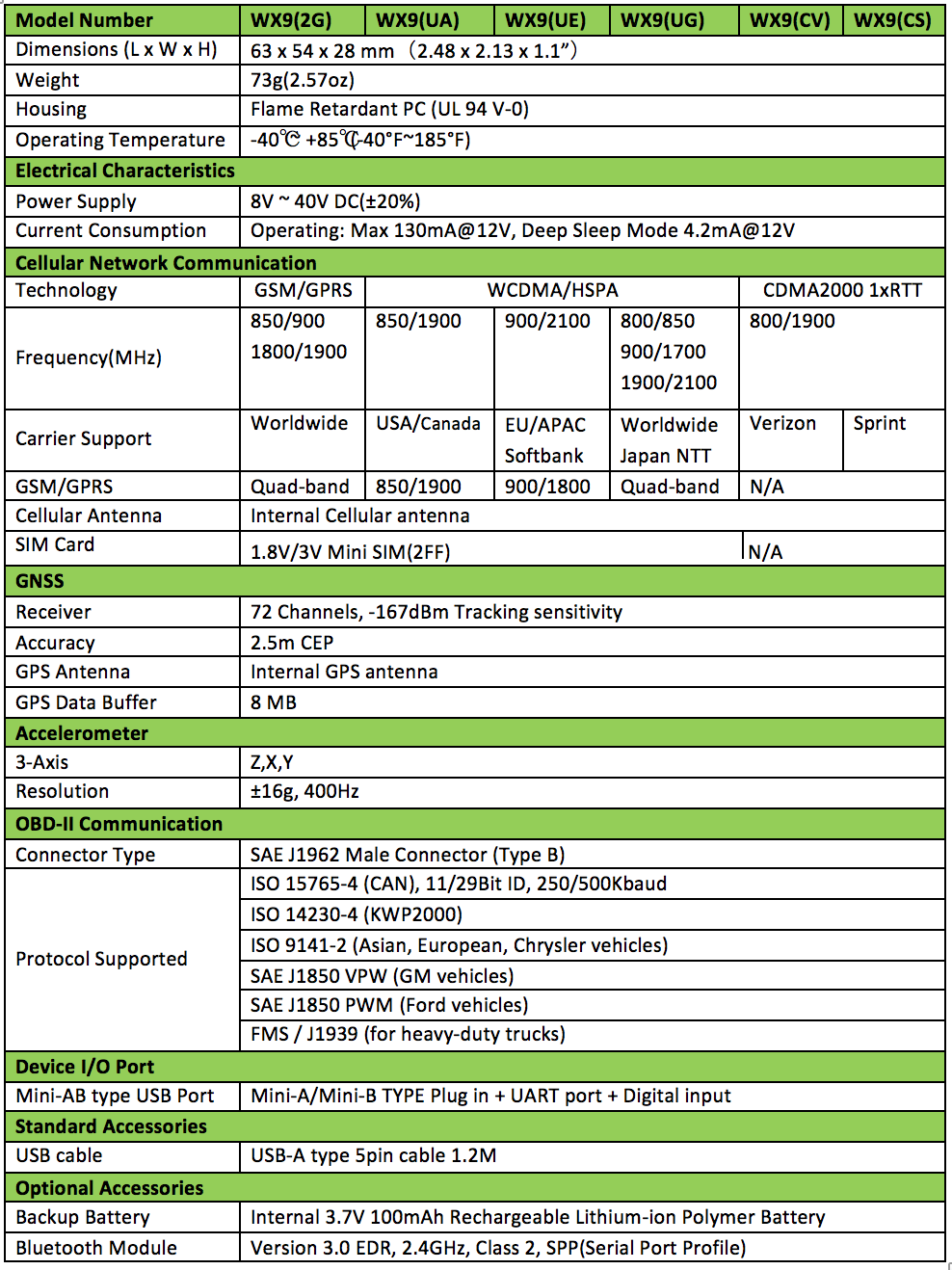

WX9 Series Hardware Specification:
* Specifications are subject to change without prior notice

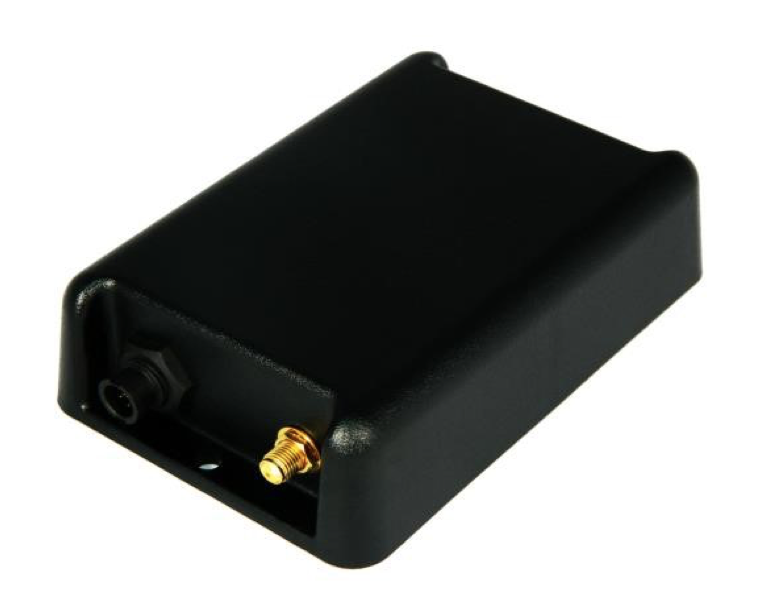

WS3 WS3E Vehicle/Trailer Tracker
The WS3 is designed for monitoring vehicle or trailer with GPS for location tracking and GPRS/HSPA /CDMA for data communication. The internal rechargeable battery makes it an ideal solution for managing assets that are normally connected to permanent power but may be disconnected for periods of time. The WS3 product has optimal design for operating environment with IP67 rating, which provides total protection against temperature, dust, and water spray. WS3 also have GPIOs that allow for a wide range of applications.
Product Features
Flexible data communication network options
Data communication by SMS/TCP/UDP
Large capacity of backup battery
Optional GPS+GLONASS engine
Configurable power management
Built-in 3-axis G-sensor
FOTA firmware upgrade using FTP
Configurable Real Time Tracking & Logging
Intelligent event control engine
3 Configurable GPIOs
Roaming preference settings
Harsh driving behaviour events
Configurable power management
32 user defined geo-fences
Support Garmin® FMI
Support external fuel level sensor
1-Wire® protocol supported
Optional Accessories:
Magnet Mount Kits

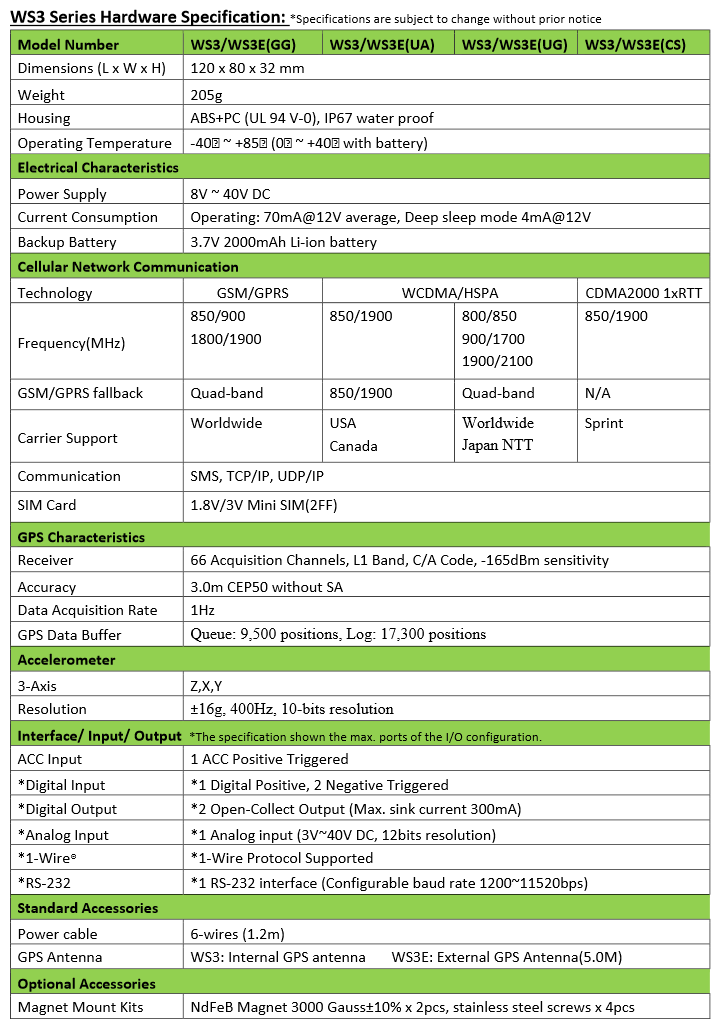

WS3 Series Hardware Specification:
* Specifications are subject to change without prior notice

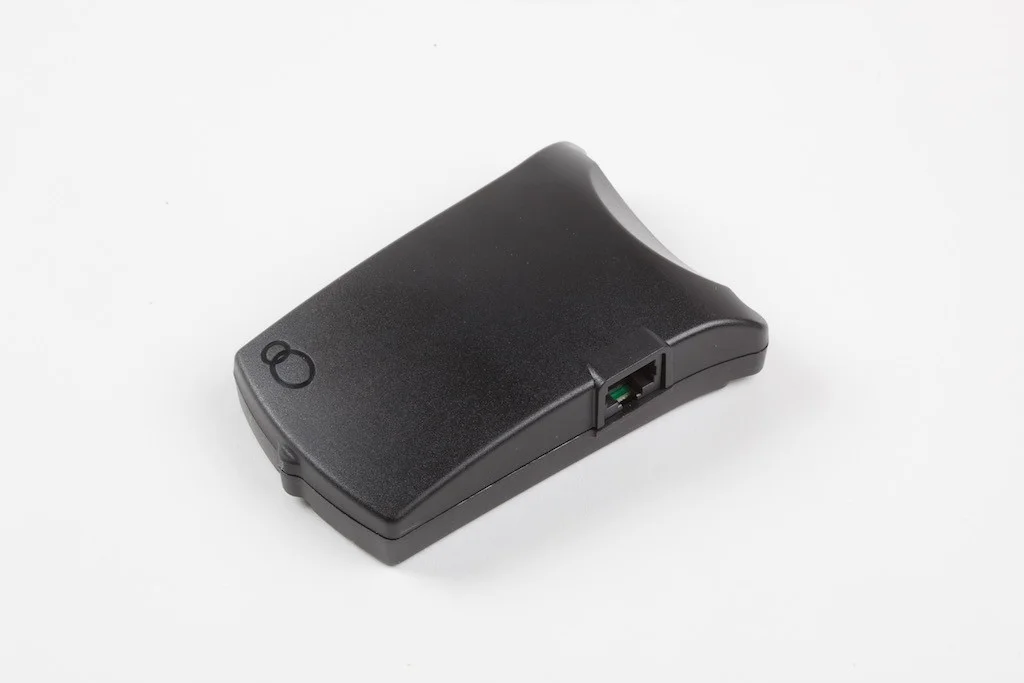

SW-43 3G Unit
The West GPS SW-43 features the highest tracking resolution, TruePath tracking and optional Garmin Messaging (Garmin).
The SW-43 gathers data from your moving vehicle to provide information concerning its location, speed and distance travelled. This makes it an invaluable tool for fleet management and vehicle security. In addition, it can be easily installed and augmented with optional accessories.
Coupled with the West GPS monitoring service the SW-43 is perfect for fleet management and vehicle security.
Note the West GPS SW-43 is only functional when paired with the West GPS monitoring service. Upon purchasing this product, you will be personally contacted regarding your West GPS account setup.
INSTALLATION INFORMATION
Installation is available when purchasing the product, this will be completed by an approved West GPS installer. Alternatively, please purchase hardware only if you would like to arrange your own installation.
SPECIFICATIONS:
Network - 3g
Size - 92 x 55 x 25mm
Weight - 78g
Waterproof - No
Backup Battery - 3.7V 2000mAh
Operating Voltage - 6 ~ 42V DC
Ignition State Sense - Yes

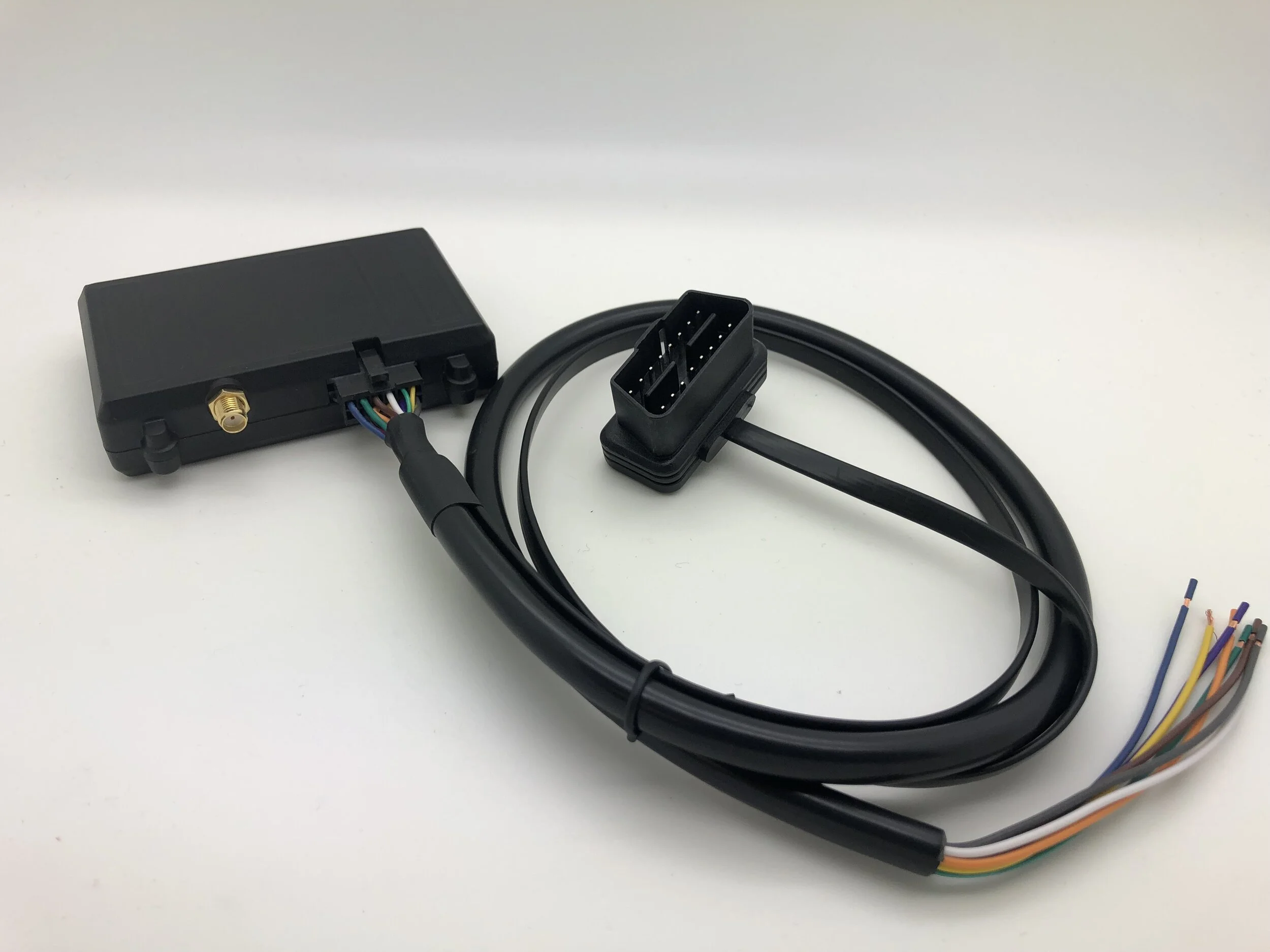

Our proprietary of the WAE - TB2 with TruePath Tracking™ and CAN bus* monitoring via the OBDII Port brings you a suite of driver behavior insights. They are delivered via live vehicle tracking, reports, and alerts.
We are constantly updating our report and alerts to increase the ease of viewing specific insights that are relevant to your business. Device firmware is updated “over the air” (O.T.A.) at no extra cost. When new firmware is released, WestGps sends updates this to the devices. *CAN bus data varies and is dependent on the vehicle age and type.
Real-time asset tracking solutions Knowing your machinery usage is key to understanding how to optimize its performance and keep your operators safe.
The WAE - TB2 assists asset managers to measure, monitor and take action to protect all assets and drivers. With real-time data on your machinery, you can watch live or playback to ensure nothing has been missed.
Reports will define key insights like machinery lifts, tips, etc., as well as where and when this took place. This provides asset managers the ease and flexibility to control downtime and plan maintenance to maximize your assets safety and total billable hours. T
Measure, monitor and take action:
■ Machinery location.
■ Engine hours.
■ Idle time.
■ Engine on / off.
■ Maintenance scheduling.
■ Unsafe behaviors like speeding.
■ Driver ID Module - this can be purchased separately from WestGps. TB2 installation is easy!
A full understanding of the reasons for tracking is necessary for the correct type of installation to ensure your data is accurate. With CAN bus (OBDII port) ‘Plug and Play’ installation is fast. We can provide you with an auto electrician for hard wire installation.
An OBDII port is fitted to most modern vehicles.
■ Temperature Probes - Monitor temperature of chilled vehicles. ■ Panic Buttons - Drivers’ safety alarm. ■ Remote Disable of vehicles. ■ Driver ID-Module (plug and play). Know how vehicles are being driven and by who.
